LNG Pump Skid

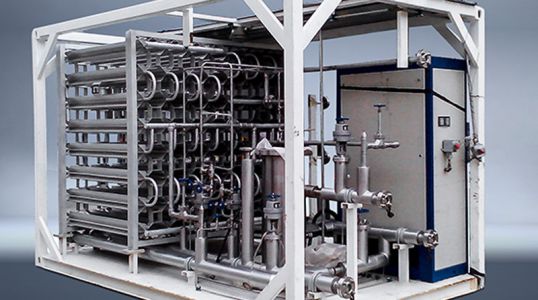

The submersible pump skid, LNG filling machine and PLC control system or a combination of organic connection to skid, Reach Split skid-mounted LNG filling stations and integrated LNG station building requirements. Wherein, LNG submerged pump skid system include LNG cryogenic submersible pumps, pump tank, vaporizer (Including unloading turbocharger, adjusting saturation heater, EAG heater) and Corresponding control valves, temperature, pressure transmitter, gas sensor, lighting systems, instrument cabinets and other integrated in a sled body. With unloading fluid, pressure, fluid, adjusting saturation, pre-cooling system and other functions.

The system utilizes point monitoring and PLC control, automatic operation of the system can be realized.

The system operation is simple, what is needed to do is connecting the inlet and outlet pipelines, switching on power supply or starting the power system.

The system has special design, it can adapt to outdoor operations and frequent highway transportation, in addition, it has outstanding anti-bumping, windproof and independent working ability.

Modular design is adopted for easy operation and maintenance;

• Humanized design is adopted for high automation;

• Vacuum pipeline and vacuum valve are adopted so as to reduce generation of BOG;

• Immersed pump level gauge is adopted so as to guarantee safety and reliability of the system;

Cryogenic submerged pump

Equip. weight: 2500kgs (single pump)

5500kgs (dual pumps)

Power supply: 380V

Flow capacity: 0-340L/min (single pump)

0-680L/min (dual pumps)

Power: 15KW (single pump)

30KW (dual pumps)

LNG dispenser

Size: 1200*650*2300(single nozzle)

1200*960*2300(double nozzles)

Equip. weight: 450kg (single nozzle), 600 kg (double nozzles)

Power supply: 220V

Power: 100(single nozzle) 200W (double nozzles)

Flow capacity: 0-80kgs/min (single nozzle), 0-160kgs/min (double nozzles)
